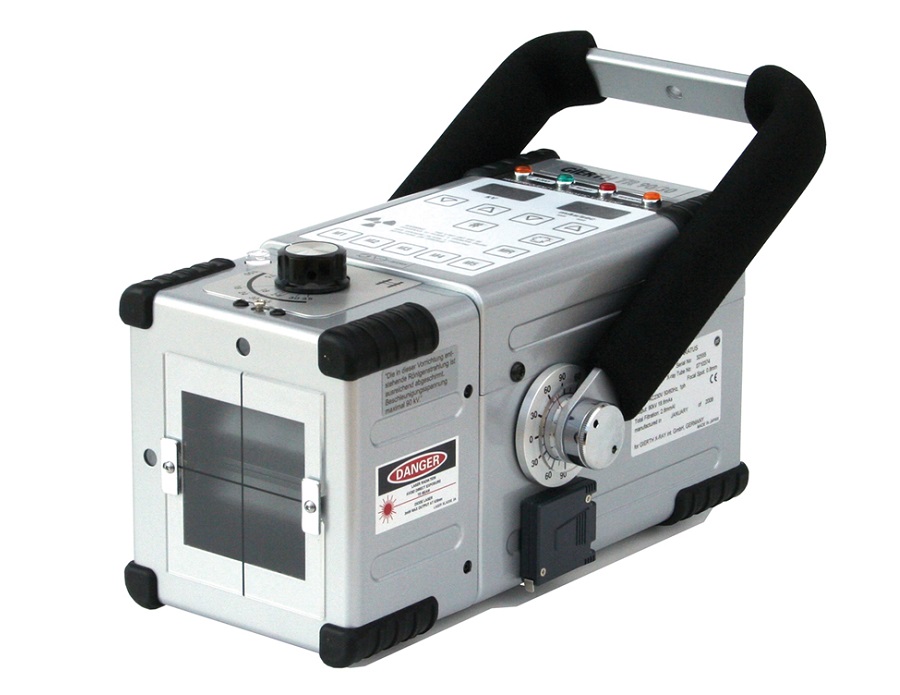

Product Range - Portable X-ray Generators GIERTH TR90/30 peak

Most advanced, lightweight portable X-ray unit

The GIERTH TR90/30peak is the perfect solution for the mobile practice. With the TR90/30peak high quality X-ray images are no longer a problem. The user friendly operation, the integrated DR interface and the extremely low weight make it the favourite unit for equine practitioners. The GIERTH TR90/30peak comes in a practical transport case.

Short description

High – frequency X-ray generator with full bridge inverter system
Only weighs 6.5 kg
Serial interface for connection with digital radiography systems
Collimator with scale to adjust the size of the light – radiation field
Collimator light can be activated via the hand switch
Acustic and optical timer signal
5 memory buttons
Dual laser pointer
Digital display „X-RAY“, „READY“ and „ERROR“
Tape measure for film – focal spot distance
Aluminium casing
Robust and innovative impact resistant construction

Techniscal data

Inverter frequency:	50 kHz
Power Requirement:	1.8 kVA
Output in 2-kV Steps:	40 – 60 kV = 30 mA (max.) 62 – 70 kV = 25 mA (max.) 72 – 80 kV = 20 mA (max.) 82 – 90 kV = 15 mA (max.)
X-ray tube:	XDT – F80
Focal spot:	0.8 mm x 0.8 mm
Dimensions L x W x H:	295 mm x 188 mm x 170 mm
Total filtration:	2.7 mm Al
