Product Range - X-ray Stands / Wall Arms - Spring arm – wall mount

Especially suited for operating rooms or small surgery rooms

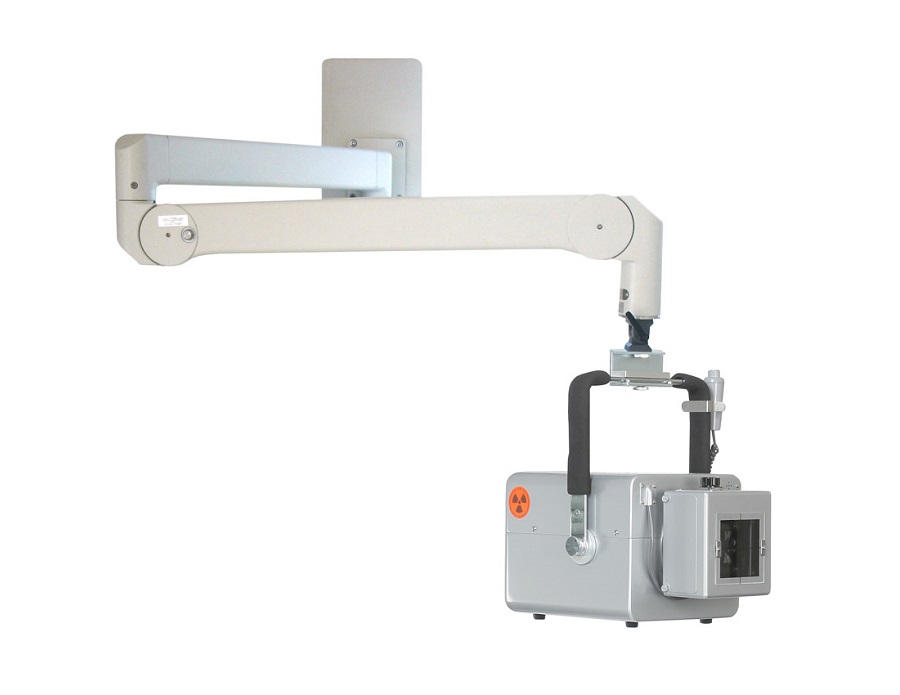

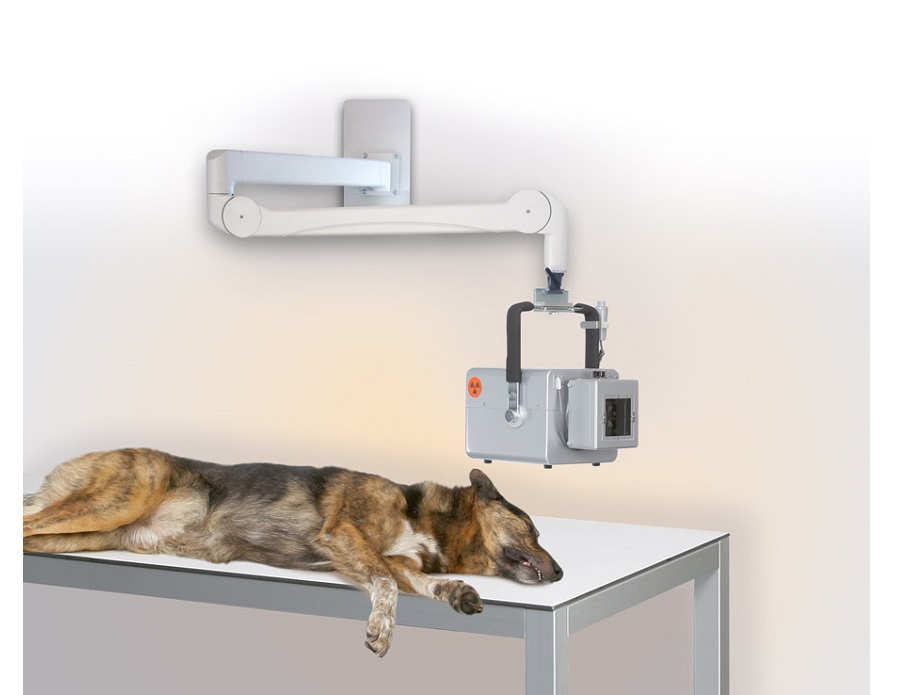

The wall mounted spring arm is a stationary suspension system for all GIERTH x-ray units. The innovative dead point suppression allows rotary motion of the x-ray unit without a stop.

Short description

  • smooth and even motion
  • suspension spring arm with precise parallel guide
  • for all GIERTH x-ray units ( up to12 kg, up to 18 kg or even up to 32 kg)
  • colour: white

Technical data

Type: Wall mount (or ceiling)
Length of arm: 1.50 m – 1.78 m (depending on type)
Special features: Adjustable height stop
Precise parallel movement
Easy load bearing capacity adjustment
Load: max. 21 kg (or on request)
