Product Range - Digital Radiography SCOPE - UltraLight

SCOPE - UltraLight

Light - Lighter - UltraLight

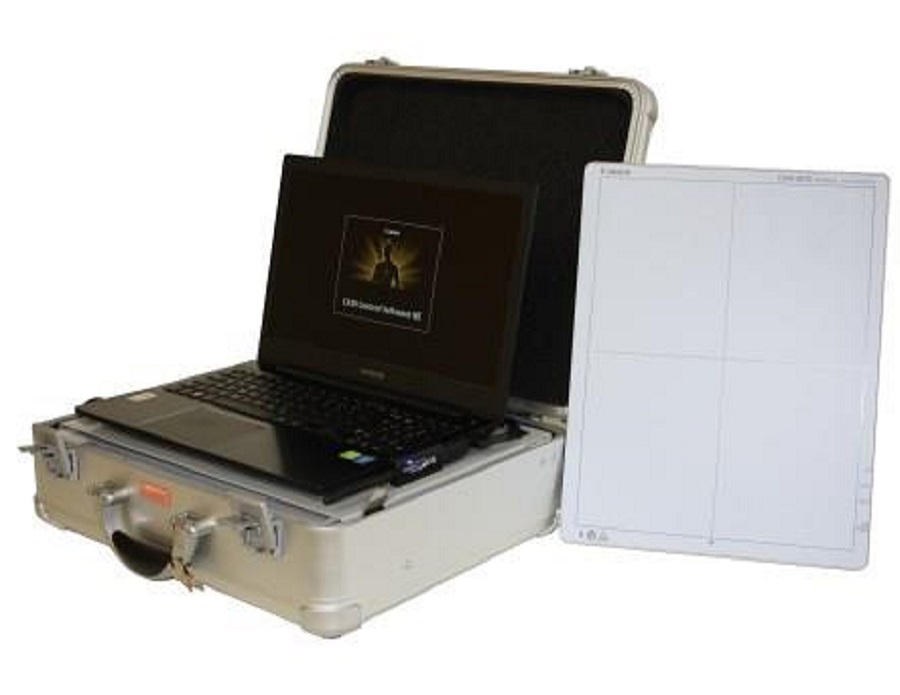

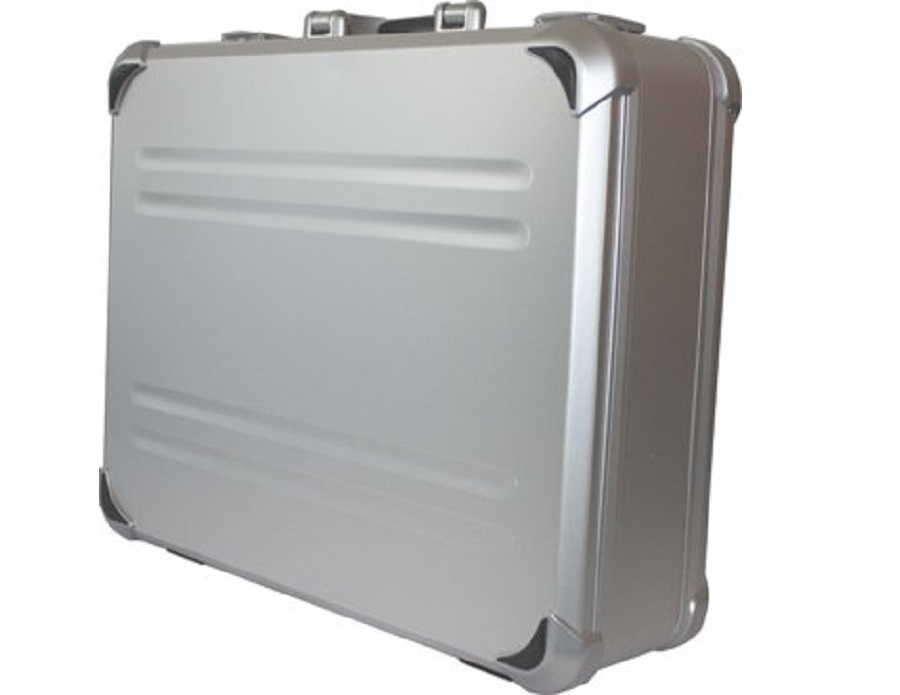

The SCOPE – UltraLight is the successor model of our famous SCOPE-XXS series. With its new cover case – made of anodised aliminum and an ultra-flat notebook, the SCOPE – UltraLight is an advanced high tech and stylish companion in the mobile veterinary practice. Same as the SCOPE – TOUCH also the SCOPE – UltraLight is equipped with a WLAN detector by Canon that automatically detects the radiation. Therefore, the use of a trigger box (connection towards the X-ray unit) is no longer needed. Digital X-ray becomes even faster and easier now. Combined with the well-known and user-friendly image acquisition software, the veterinarian can create excellent X-ray images, which he can directly see and evaluate at the notebook.  To protect the flat panel detector, the SCOPE – UltraLight comes with a plexiglass panel protection box.

Optional solutions, such as a pre-purchase examination module, are available as well.

Short description

Mobile, digital system, installed in a stylish case
High - resolution wireless Canon detector
High - quality, ultra-flat notebook
Total weight (including detector, batteries and protection box): 11 kg
User - friendly image aqcuisition software
Archiving and diagnsotic software dicomPACS®
Dimensions (closed) L x W x H: 45.5 cm x 40 cm x 14.5 cm

Specifications of Canon wireless Detector


  CXDI-801C Wireless
Scintillator CsI
Image size 27.4 x 35 cm
Resolution Approx. 6.1 Mega Pixels
Pixel pitch 125 μm
Greyscale 4096 (12 bit)
Preview time Approx. 3 sec.
after exposure
DICOM 3.0 compatible
Dimensions in mm
(W x L x D)
307 x 384 x 15
Weight 2.3 kg
5 - 35 °C, 30 – 50 % RH
Approx. 140 images
