Product Range - Digital Radiography SCOPE - TOUCH

A TOUCH better

To meet the increasing requirements in the field of digital X-rays, the new SCOPE – TOUCH was equipped with an extra-large TOUCH monitor, which allows evaluating of X-ray images on a new level. The practical, robust and compact case contains of – such as his preceding model – a high-quality Flat Panel detector by Canon. The innovation: the CXDI 801C is not only a wireless detector, with light weight and high resolution, but is able to detect radiation independently and automatically, so there is no need to operate the system with a trigger box towards the X-Ray unit. Combined with the well-known and user-friendly image acquisition software, the veterinarian can create excellent X-ray images, which are directly displayed at the 19 inch TOUCH monitor. To protect the flat panel detector, the SCOPE – TOUCH comes with a plexiglass panel protection box.

Optional solutions, such as a pre-purchase examination module, are available as well.

Short description

Mobile and flexible, as well as robust case for the creation of digital X-ray images
High - resolution wireless Canon detectors
High - quality, 19 Inch MULTITOUCH monitor
Total weight (including detector and protection box): 18.5 kg
User - friendly image aqcuisition software
Archiving and diagnsotic software dicomPACS®
Dimensions (closed) L x W x H: 54 cm x 47 cm x 20 cm

Canon Detectors Available

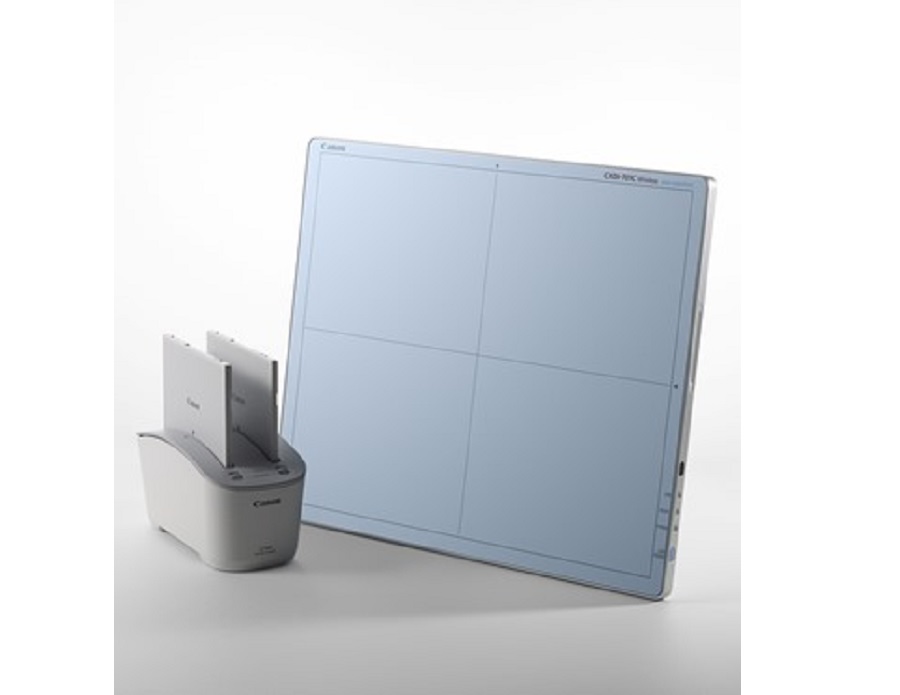

	CXDI-801C Wireless	CXDI-701C Wireless
Scintillator	CsI	CsI
Image size	27.4 x 35 cm	35 x 43 cm
Resolution	Approx. 6.1 Mega Pixels	Approx. 9.5 Mega pixels
Pixel pitch	125 μm	125 μm
Preview time	Approx. 3 sec. after exposure	Approx. 3 sec. after exposure
DICOM 3.0	compatible	compatible
Dimensions in mm (W x L x D)	307 x 384 x 15	460 x 384 x 15
Weight	2.3 kg	3.3 kg
Working conditions	5 - 35 °C, 30 – 50 % RH	5 - 35 °C, 30 – 50 % RH
Battery performance	Approx. 140 images	Approx. 140 images
