Product Range - Portable X-ray Generators RHF200ML

The universal X-ray unit for every veterinarian

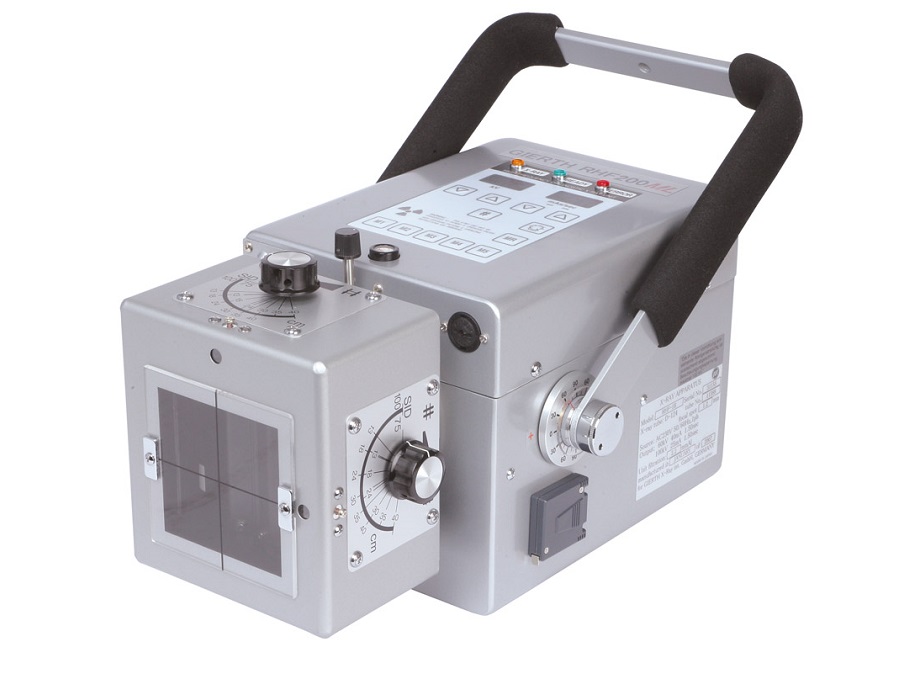

The GIERTH RHF200ML is a unique X-ray unit, which is equally – whether at home in the veterinary practice, during a surgery or on site. The high power brings lots of advantages: Due to very short exposure times, there is a reduced radiation dose on humans and animals. There is also nearly no need for retakes because of the short exposure times.

The proven GIERTH technology is easy to handle.

Short description

High – frequency X-ray generator with full bridge inverter system
Only weighs 11.2 kg
Serial interface for connection with digital radiography systems
Collimator with scale to adjust the size of the light – radiation field
Collimator light can be activated via the hand switch
Acustic and optical timer signal
5 memory buttons
Dual laser pointer

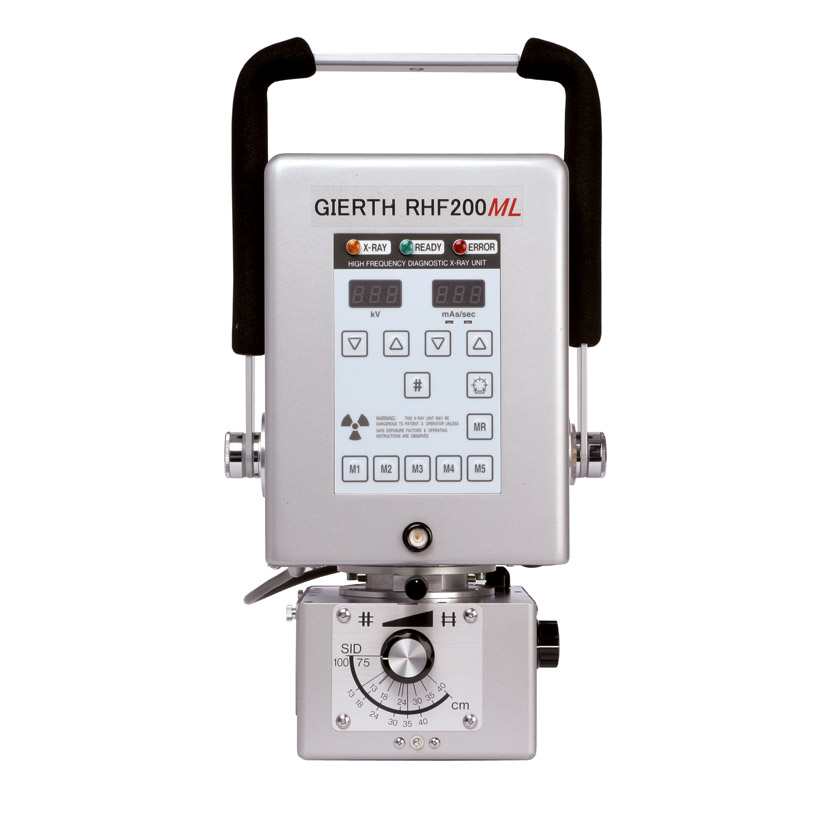

Digital display „X-RAY“, „READY“ and „ERROR“
Tape measure for film – focal spot distance
Aluminium casing

Techniscal data

Inverter frequency:	60 kHz
Power Requirement:	2.5 kVA
Output in 2-kV Steps:	40 – 60 kV = 40 mA 62 – 70 kV = 35 mA 72 – 80 kV = 30 mA 82 – 100 kV = 25 mA
X-ray tube:	Toshiba D-124
Focal spot:	1.2 mm x 1.2 mm
Dimensions L x W x H:	370 mm x 247 mm x 215 mm
Total filtration:	2.7 mm Al
