High frequence generator:

-       32 kW HF-generator (max. 400 kHz) (22kW IEC)

-       100 - 240 VAC, 50/60 Hz

-       Single phase (standard wall plug) 16A

-       kV range 40 - 125 kV

-       mA range 10 – 500 mA

-       Exposition time 0,001 – 10 Sek.

-       mAs range / steps 0,1 – 500 mAs

-       - 2-step footswitch, alternatively hand exposure switch

Tube and Collimator:

-       Double focus rotating anode

small focus: 1,0 mm (optional 0,6 mm)

large focus: 2,0 mm (optional 1,2 mm)

-       Anode angle 14° / 12°

-       Revolvable collimator

with power LED technology

Laser class 2 for central beam projection

Optional filter and timer

Digital system:

-       Outstanding image quality at lowest dose rate

-       CANON FPD based on amorphous silicium with Csl Scintillator

As an example: CXDI-401C Compact

-       Dimensions: 35 x 42,6 cm, optional 42,6 x 41,5 cm

-       Pixelsitze: 125µm

-       DQE: >0,6 (0 lp/mm)

-       CANON CXDI Control Software NE

-       Optionally with Scatter Correction software for reducing the effects of scattered radiation

Further options from CANON are available as well, e.g. FDX4343R or the wireless alternative CXDI-701C.

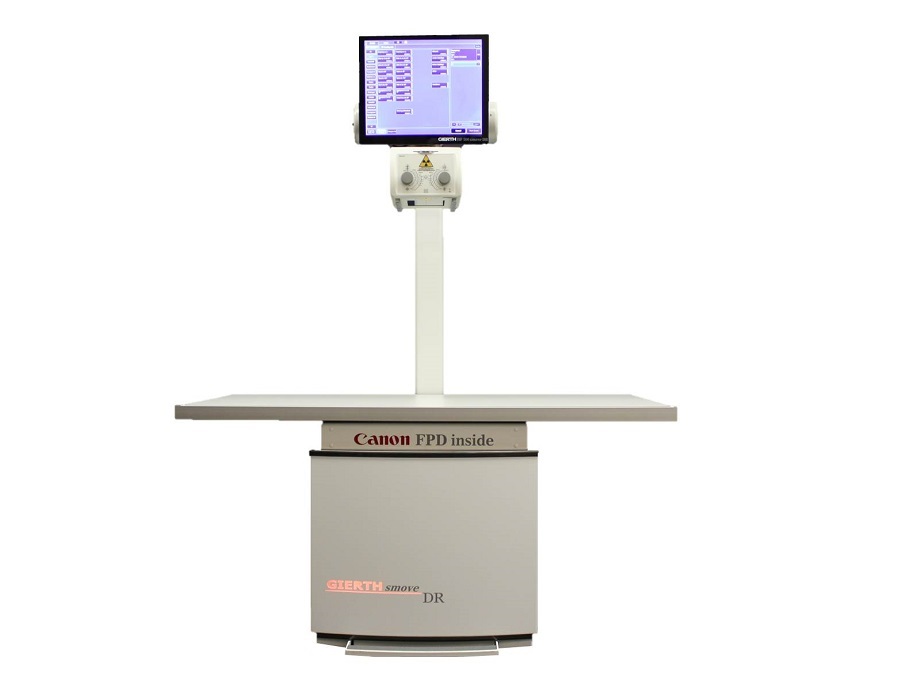

Table:

-       Floating table top with wide vertical travel distance

-       Low noise mechanical braking system

-       X-ray tube stand with fixed focus-to-film distance (100 cm)

-       19” multitouchdisplay on top of the table or installed at the wall

-       Dose optimized table top with anchorage possibility and easy fastening technology: approx. 155 x 71 cm

-       Optional grid slot
