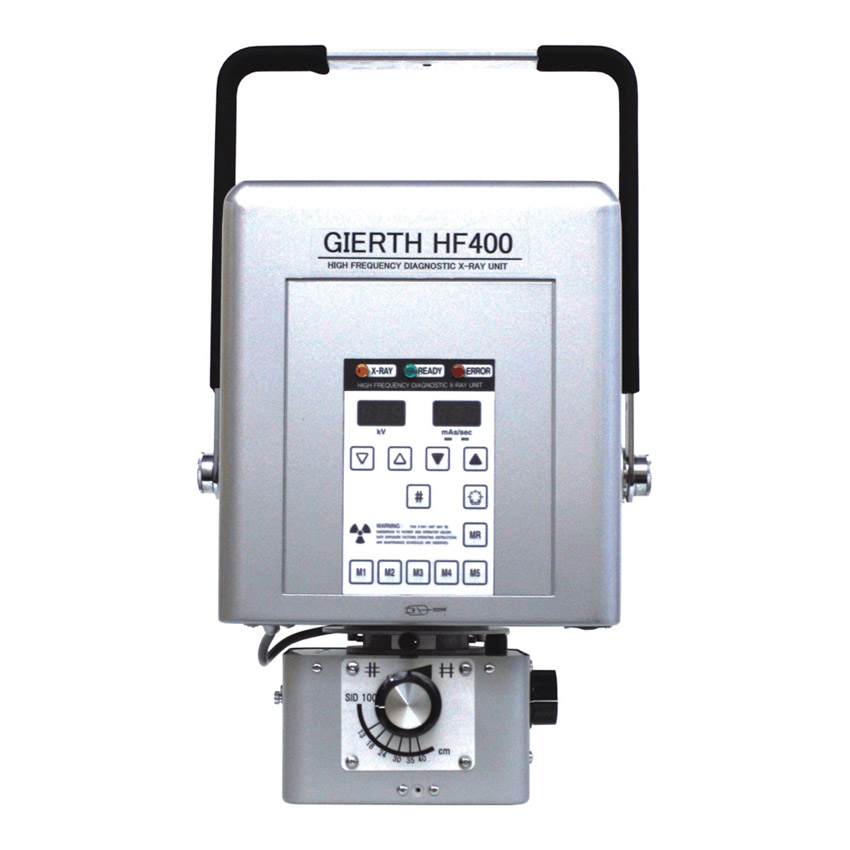

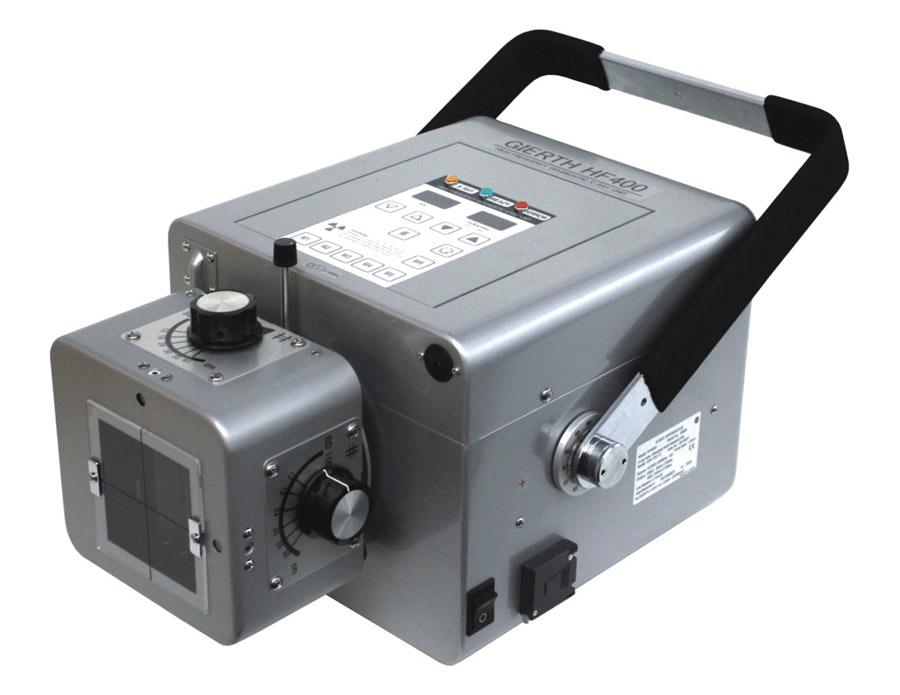

Product Range - Portable X-ray Generators The GIERTH HF400ML

The universal X-ray unit – from small animal- to equine clinic

The GIERTH HF400ML is the most universal X-ray unit in the product range. It may be used in small animal clinics, as well as mixed practices, equine clinics or even in zoos. The high power X-ray unit GIERTTH HF400ML allows shortest exposure times and moves portable X-rays to a new level.

Short description

  • High – frequency X-ray generator with full bridge inverter system
  • Weight of 22.4 kg
  • Serial interface for connection with digital radiography systems
  • Collimator with scale to adjust the size of the light – radiation field
  • Collimator light can be activated via the hand switch
  • Acustic and optical timer signal
  • Dual laser pointer
  • Digital display „X-RAY“, „READY“ and „ERROR“
  • Tape measure for film – focal spot distance
  • Aluminium casing

Technical data

Inverter frequency: 50 kHz
Power Requirement: 6.0 kVA
Output in 2-kV Steps: 40 - 50 kV = 100 mA (max.)
52 – 60 kV= 80 mA (max.)
62 – 80 kV = 70 mA (max.)
82 – 100 kV = 60 mA (max.)
102 – 120 kV = 40 mA (max.)
X-ray tube: XD4-120
Focal spot: 1.2 mm x 1.2 mm
Dimensions L x W x H: 430 mm x 320 mm x 260 mm

Total filtration:

2.7 mm Al
