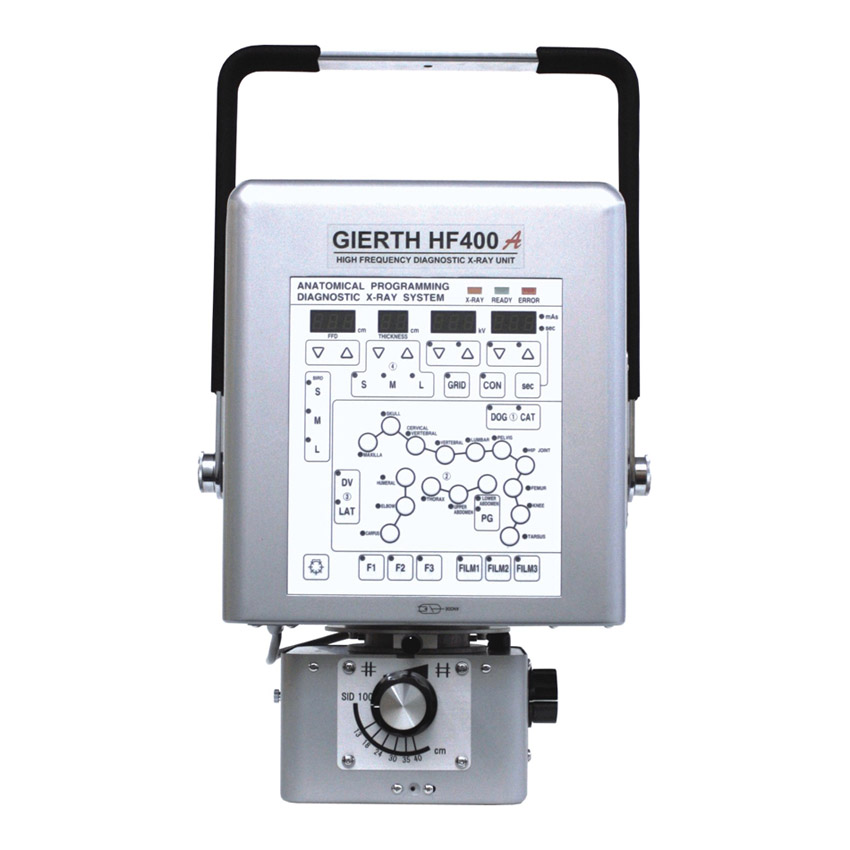

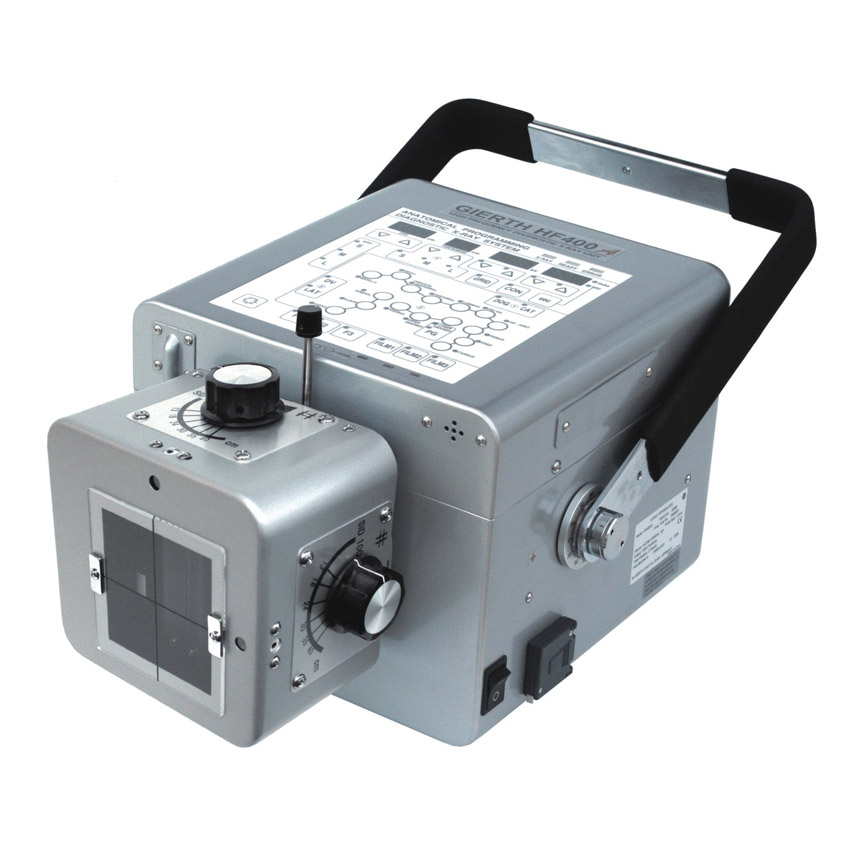

Product Range - Portable X-ray Generators GIERTH HF400A

The power pack unit with anatomical program

The GIERTH HF400A with anatomical program is mainly used in small animal clinics.

1,200 stored exposure settings help to make the daily routine in creating high – quality X-ray images as quick and easy as possible. The intuitive user guidance through the anatomical program makes the GIERTH HF400A an ideal X-ray unit for the small animal vet. The high power of the X-ray unit allows very short exposure times – so chest X-rays are a mere child's play.

Short description

High – frequency X-ray generator with full bridge inverter system
Weight of 22.4 kg
Easiest handling due to stored exposure settings for dogs, cats, birds and other pets
Thickness gauge for measuring object thickness
Serial interface for connection with digital radiography systems
Collimator with scale to adjust the size of the light – radiation field
Collimator light can be activated via the hand switch
Acustic and optical timer signal
Dual laser pointer
Digital display „X-RAY“, „READY“ and „ERROR“
Tape measure for film – focal spot distance
Aluminium casing

Techniscal data

Inverter frequency:	50 kHz
Power Requirement:	6.0 kVA
Output in 2-kV Steps:	30 – 38 kV = 60 mA (max.) 40 - 50 kV = 100 mA (max.) 52 – 60 kV= 80 mA (max.) 62 – 80 kV = 70 mA (max.) 82 – 100 kV = 60 mA (max.) 102 – 120 kV = 40 mA (max.)
X-ray tube:	XD4-120
Focal spot:	1.2 mm x 1.2 mm
Dimensions L x W x H:	430 mm x 320 mm x 260 mm
Total filtration:	2.7 mm Al
