Product Range - Table CombiVet S

CombiVet S

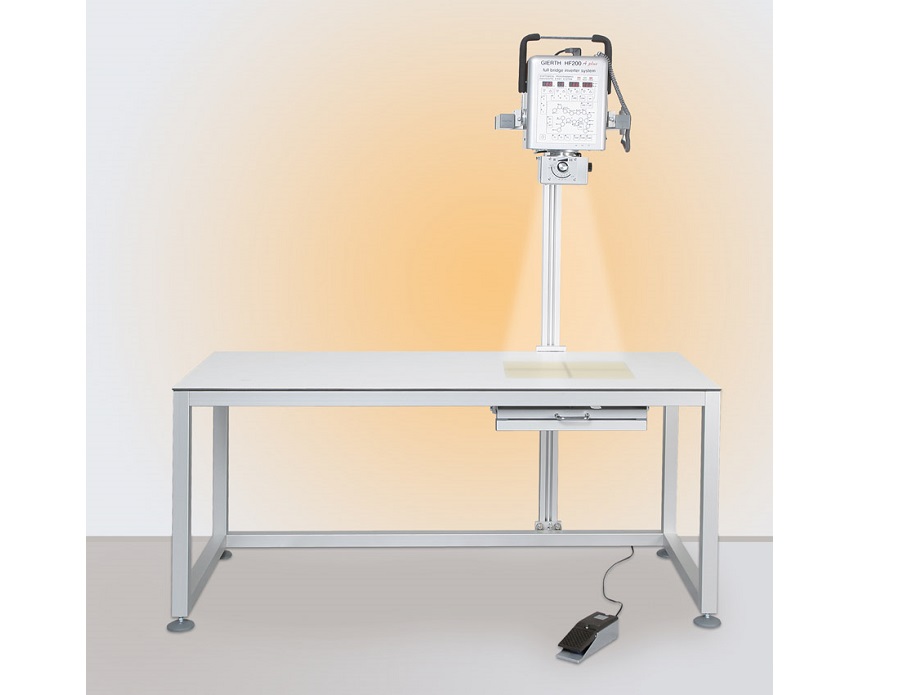

X-ray table with integrated stand for examinations with image receptor at or below the table

The CombiVet S is a versatile X-ray table with integrated X-ray stand. The positioning of the image receptor may either be at or below table top to eliminate image cut-off. The cassette drawer of the CombiVet S moves simultaneously to the X-ray generator and allows a comfortable positioning of the four-footed patient.

An optional pet veterinary positioner for DDH images is available on request.

Short description

  • Table frame made of anodised aluminium

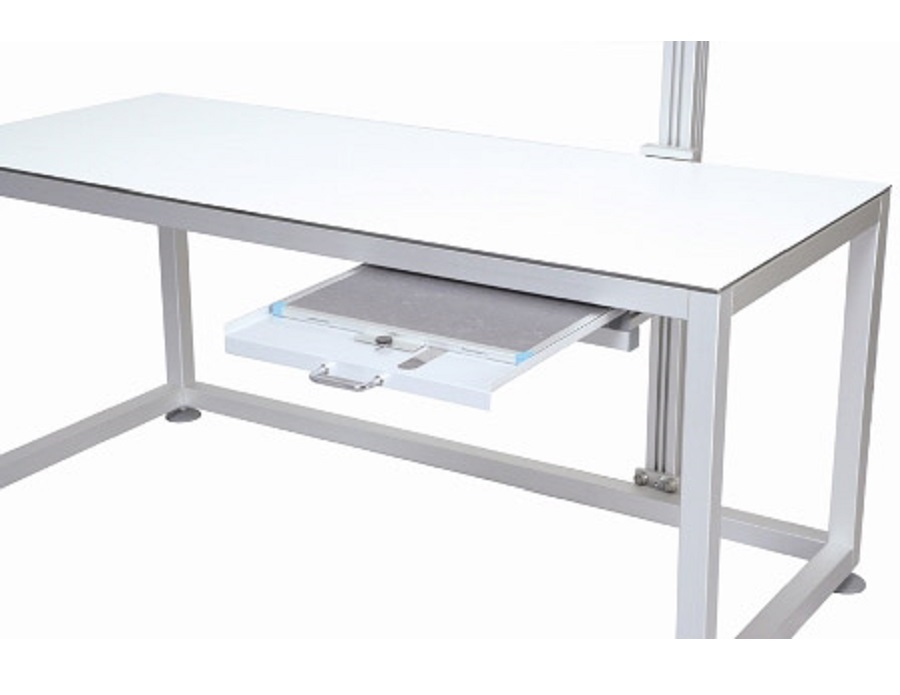

  • Simultaneously to the generator moving cassette / grid frame
  • Table top made of radiolucent white synthetic material
  • Easy to clean and disinfect

Technical data

Dimensions (L x W x H): 155.5 cm x 76.5 cm x 73 cm (without stand)
Size of table board: 155.5 mm x 67.5 mm
Unit suspension type I: Standard unit suspension with fixed film – focus - distance
Unit suspension type III: Height adjustable, axial movement and pivot joint for rotation of the X-ray unit
